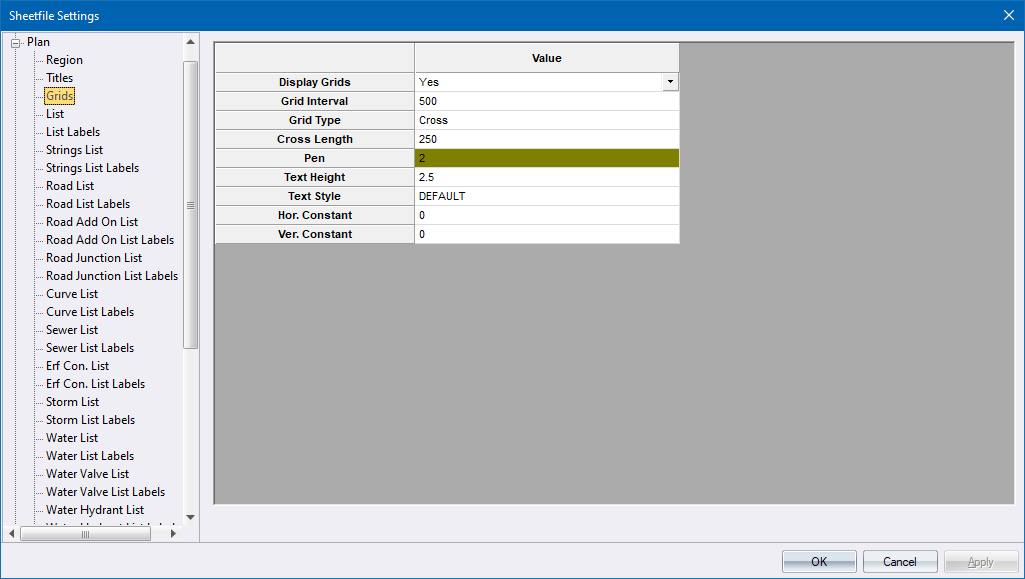

Plan Grids

Option

Description

Display Grids

Select whether grids should be displayed (Yes) or not (No).

Grid Interval

Specify the interval between grid marks in metres.

Grid Type

Select whether to draw grid crosses (Cross) or grid lines that cross the plan region (Full).

Cross Length

Enter the length of the arms of the grid cross. Only applicable to the Cross grid type.

Pen

Select the pen to be used for drawing the grids. Right-click the cell to display the pen selection.

Text Height

Enter the height of the grid text in mm.

Text Style

Select the text style in which the text should be drawn.

Hor. Constant

Enter a constant value to be subtracted from the Horizontal coordinate.

Ver. Constant

Enter a constant value to be subtracted from the Vertical coordinate.
