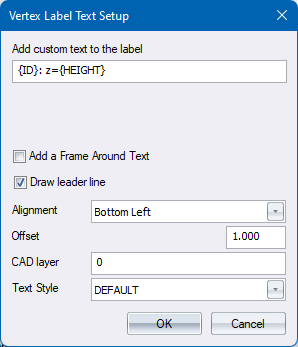

Option |
Description
|
| Add custom text to the label | Enter the text to be added to the label name. Right-click to access the ID and Height parameters. |
| Add a Frame Around Text | Select this checkbox if you want to add a box about the label. |
| Alignment | Specify the Lorg of the label. |
| CAD Layer | Add a CAD layer for publishing purposes, other than the default layer. |
|
Text Style |
Specify the font type used for the labels. |
|
Draw leader line |
Select this option to draw a leader line from the text position to the vertex position. |
|
Alignment |
Specify the text alignment of the label |
|
Offset |
Specify the offset of the text position from the vertex position in drawing units. |
