Option

Description

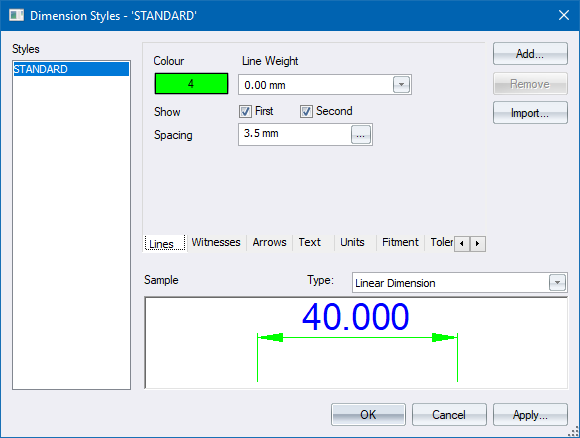

Colour button

Click to display the Colour Selection in order to select a pen for the dimension lines.

Weight

Select a line weight from the dropdown list.

Show First

Select this checkbox to have the first dimension line, i.e. the left half, of the dimension line visible.

Show Second

Select this checkbox to have the second dimension line, i.e. the right half, of the dimension line visible.

Spacing

Enter the distance between dimension lines, in drawing units, when creating running dimensions.
