Block Stats

Output information about the usage of the blocks in a drawing.

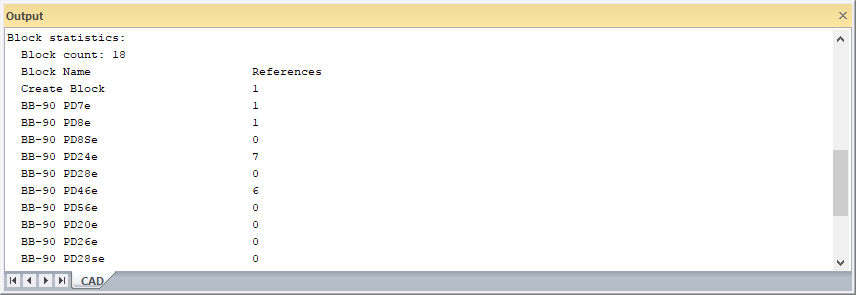

This function allows you to view which blocks have been used in a drawing, and how many times they have been used. The block statistics, which include the names of all the blocks available in the Block Manager along with the number of times each block is referenced in the drawing, are displayed in the Output Bar.

In large drawings, it can take a few seconds for the stats to appear.
Blocks can be referenced by block inserts, tables, arrows and dimension styles.
