Displays the links and erf connections according to the selected parameter and pen for that specific attribute.
The link
colour scheme will only be applied after an analysis of the network has
been completed. The Size parameter
will also only be applied to links with a size1 value. This means that
pumps will not be displayed in the size colour scheme.
Option
|
Description |

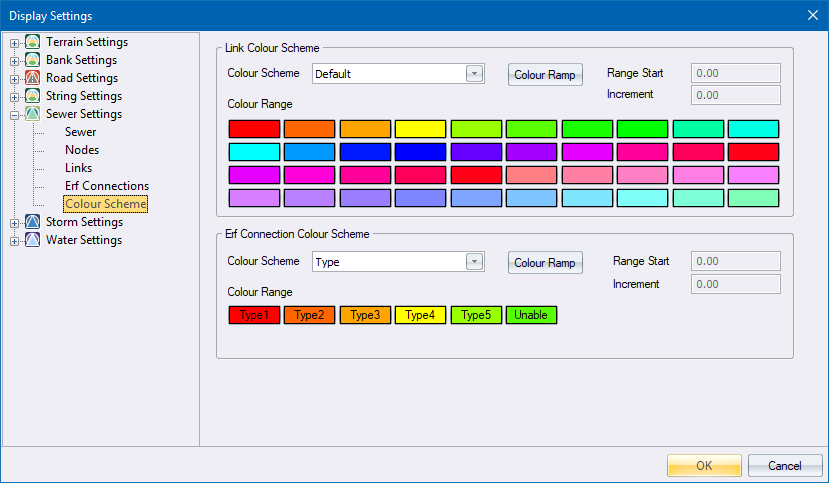

Link Colour Scheme |
|
Colour Scheme |
Select the design item by which the link colours should be determined. The options here are:
The Default option uses the default line pen as specified previously. |
Colour Ramp |
Click to access the Colour Ramp so you can specify a ramp to be applied to the Colour Range. |
Range Start |
Enter the minimum value for the selected design item. Only available when Colour Scheme is not set to Default. |
Increment |
Enter the increment value for each step in the range of values. There are 40 steps in the range. Only available when Colour Scheme is not set to Default. |
Colour Range |
Click the relevant button to change the colour assigned to that particular range item. |
Erf Connection Colour Scheme |
|
Colour Scheme |
Select the design item by which the link colours should be determined. The options here are:
The Default option uses the default line pen as specified previously. |
Colour Ramp |
Click to access the Colour Ramp so yo can specify a ramp to be applied to the Colour Range. |
Range Start |
Enter the minimum value for the selected design item. Only available when Colour Scheme is not set to Default or Link Type. |
Increment |
Enter the increment value for each step in the range of values. There are 20 steps in the range. Only available when Colour Scheme is not set to Default. |
Colour Range |
Click the relevant button to change the colour assigned to that particular range item. |
