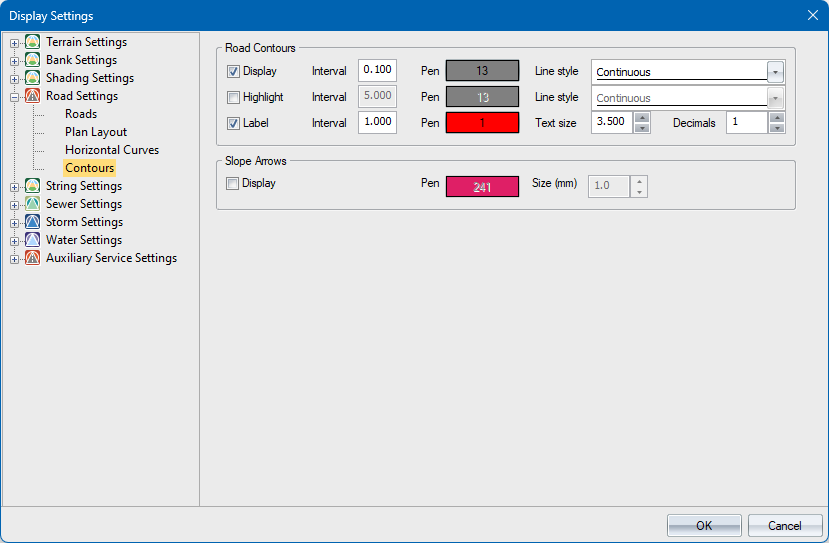

Display options for the road plan when the road strings design option is used.
|
Option
|
Description |
|
Road Contours |
The road string model can be contoured very easily. Specify the contour display details here. |
|
Display |
Specify the contour interval, pen and line style. |
|
Highlight |
Specify the contour highlight interval, pen and line style. |
|
Slope Arrows |
To give you an indication of the slope direction of the various triangles of the road strings surface model, you can display slope arrows. An arrow will be drawn on each triangle. |
|
Display |
Specify the slope arrow pen and arrow head length. |
