Road Footprint Area
Calculate road footprint areas.
|
Icon |
Command |
Shortcut Key |
Toolbar |
|
|
RD_AREAVOLFOOTPRINT |
|
|
This function allows you to calculate the plan and sloped areas in cut and fill, for the road footprint.
Procedure

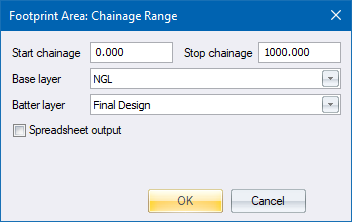

- The Chainage range displays.
-
Click OK to calculate the road footprint area in cut and fill.

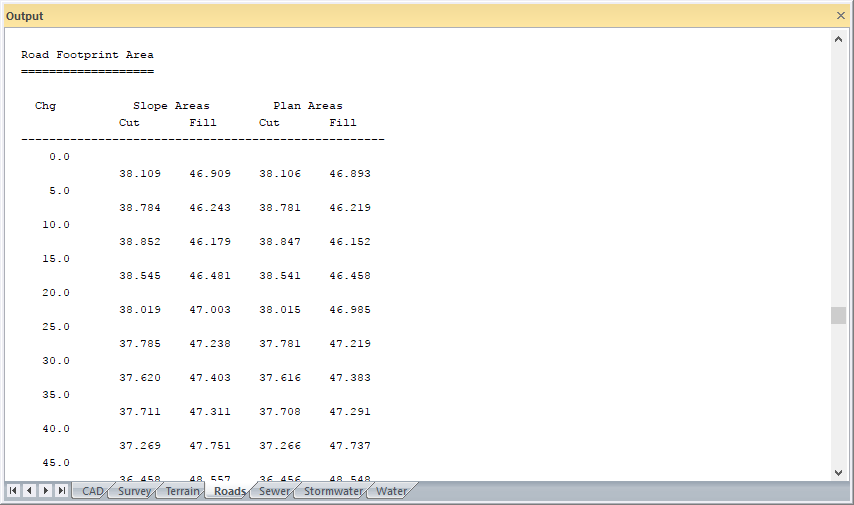

- The plan and slope areas for cut and fill are printed per chainage interval.

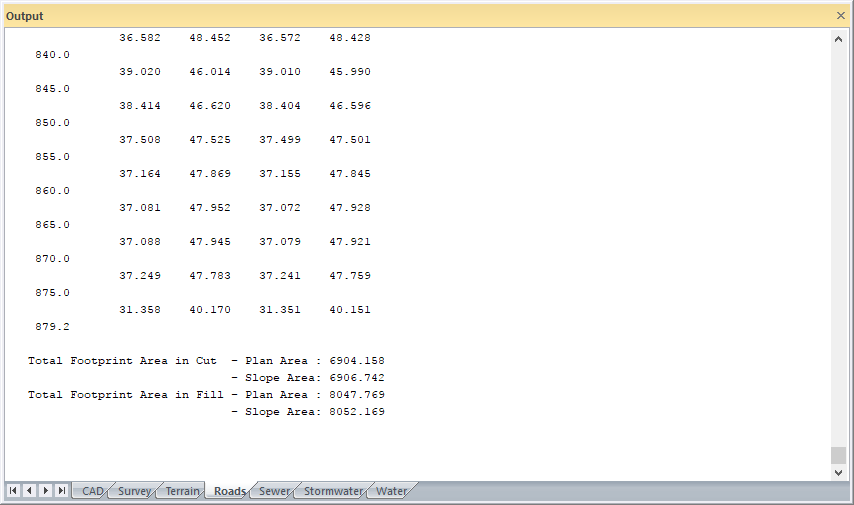

- The total plan and slope areas for cut and fill for the road, excluding intersections, are printed next.

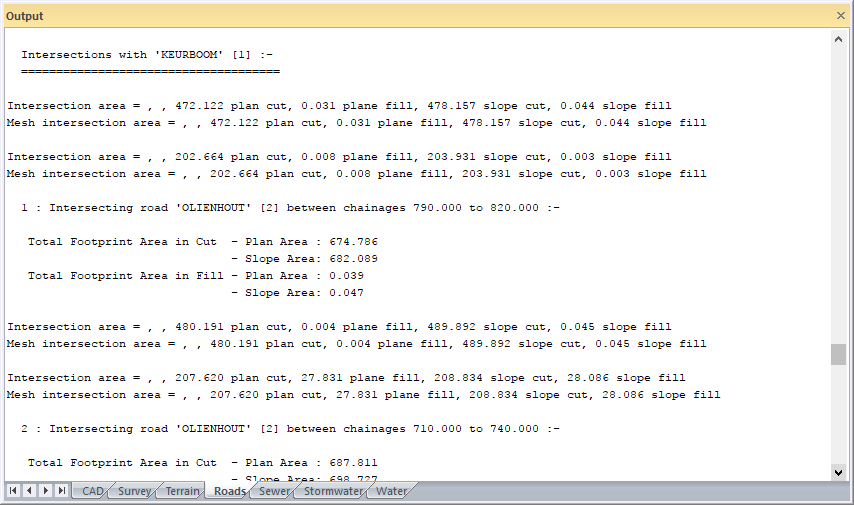

- Lastly, the footprint areas of each intersection are outputted.
