Batter Slope Adjustment
Apply a constant change to batter slopes.
|
Icon |
Command |
|
|
RD_INDEXBATTERADJUSTMENT |
This function allows you to add a constant to the batter slopes, or multiply batter slopes between two chainages in the section file by a constant.
A typical use would be for "daylighting" sections.
Procedure
- The Chainage Range details display.
-
Fill in the relevant data and click OK to continue.

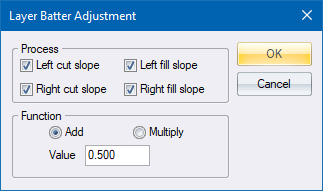

- The Layer Batter Adjustment options display.
- Fill in the relevant data and click OK to continue.
