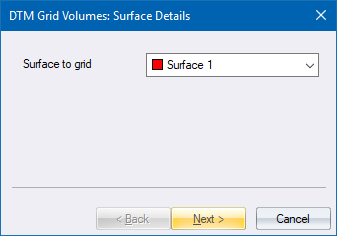

Single Surface Grid
|
Option
|
Description |
|
Surface to grid |
Choose the surface from which you want a grid generated. |
Ground Design Surface or Difference Grid
|
Option
|
Description |
|
Ground surface |
Choose the surface which forms the base surface of a ground/design pair. |
|
Design surface |
Choose the surface which forms the design or platform surface of a ground/design pair. |
|
Extra-over for excavations |
Check to incorporate extra-over cut quantities for excavations |
|
Settings |
Press to show the Terrain Extra-over Details Dialog for selection of surfaces for extra-over excavations |
See Also DTM Grid Volumes
